Street Jam NEO-ZEON
Author Message
User avatar

Joined: Thu Jan 31, 2008 3:11 pm
Posts: 5428
Location: Florianópolis - SC
Post Street Jam NEO-ZEON
não tenho muita info ainda...
mas já ta ai algumas imagens....





_________________


Fri Aug 26, 2011 12:46 pm
Profile WWW
User avatar

Joined: Fri Nov 14, 2008 10:20 pm
Posts: 248
Location: Maringá PR
Post Re: Street Jam NEO-ZEON
Gostei do chassi, mas acho que bateria só de um lado da um problemão na distruibuição de peso.
Tem que vet tambem o Cs já que esse é cardã.
Mas em geral, o chassi ta bonitão.

_________________
Projeto TA05v2 Exotek


Fri Aug 26, 2011 7:33 pm
Profile
User avatar

Joined: Thu Apr 14, 2011 11:18 am
Posts: 245
Location: Fortaleza - CE
Post Re: Street Jam NEO-ZEON
Gostei muito do chassi, eu acho q R2hobbies vai clonar esse neo-zeon... sei lá

_________________
.: Chassi TEH-R31 :: Bolha tamiya Nissan GT-R :: ESC Turnigy 60A :: Motor 9T :: Lipo 5000mah 2S 30C :: Rádio Eurgle 3Ch :.


Fri Aug 26, 2011 10:52 pm
Profile
User avatar

Joined: Fri Nov 14, 2008 10:20 pm
Posts: 248
Location: Maringá PR
Post Re: Street Jam NEO-ZEON
ferrugimiony wrote:
Gostei muito do chassi, eu acho q R2hobbies vai clonar esse neo-zeon... sei lá


Bem lembrado ferrugimiony, as chances são grandes.

_________________
Projeto TA05v2 Exotek


Sat Aug 27, 2011 1:01 pm
Profile
User avatar

Joined: Sat Sep 26, 2009 1:05 pm
Posts: 1694
Location: Japão Gifu ken - Ogaki shi
Post Re: Street Jam NEO-ZEON
Alcides Garcia wrote:
Gostei do chassi, mas acho que bateria só de um lado da um problemão na distruibuição de peso.
Tem que vet tambem o Cs já que esse é cardã.
Mas em geral, o chassi ta bonitão.

mano esse chassi tem muita peça q é da yokomo
então CS vi de boa hehe

_________________
Chassi GRK 2+ / ESC hobbywing V3.1 / motor 10.5T / Radio Futaba 4PKs


Sun Aug 28, 2011 11:00 pm
Profile WWW
User avatar

Joined: Thu Jan 31, 2008 3:11 pm
Posts: 5428
Location: Florianópolis - SC
Post Re: Street Jam NEO-ZEON
montagem do bixo.

Banggotan wrote:

The box size is exactly the same as OTA-R3R. The design is also similar but Zeon Mark III (Neo Zeon) writings are in Red

The box itself is quite packed. it came with wheels and Streetjam Ultra Hard Tires also

Here are the part bags

Okay now lets move on the build up (I'm just gonna let the pictures do the talking now..)

Front 1 way

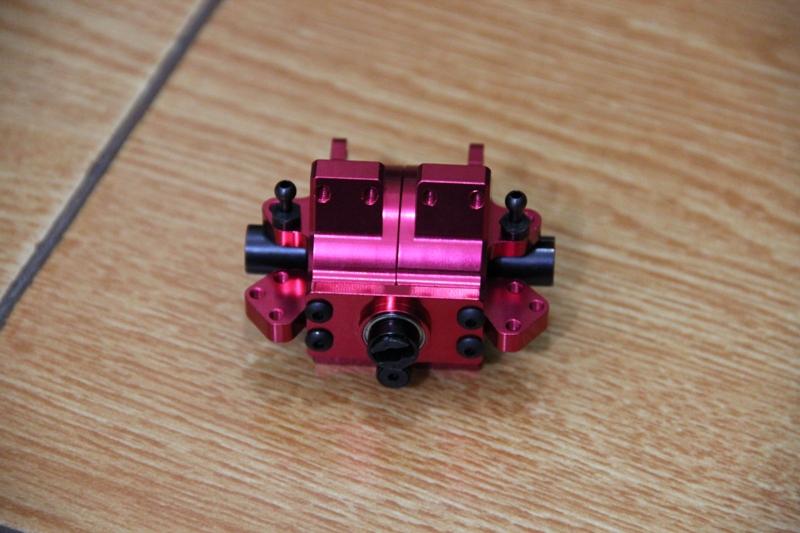

Front Bulkhead


Rear Bulkhead equipped with Yokomo 1.8 cs gears. Might swap to 2.0 depending on surfaces Im playing

Front and Rear bulkheads are exactly the same. Its just that the rear one is fitted with yokomo cs gear

Carbon parts that came with the kit has a slight red color on it.

Assembling the floating motor mount and front bulkhead

Assembling the deck brace, this aluminum deck brace was a hop up for previous generation of zeon, but now its included in NEO ZEON

Assembling the rear bulkhead

Assembling the steering crank and brackets (including lower arms). oh by the way, the kit comes with 73t spur gear. I use 77t spur gear from Yokomo DRB and grind the openings a little bit on the lower deck for clearance.

I don not know why, but this is my favorit part of any zeon. The rear mutiple brace. For Neo Zeon case, its also floating like the motormount

looks like this when finished. Love it!

Battery holder installed, the lower deck has 2 choices for the batt holder. I choose to place the battery a bit forward.

Almost done...

Somehow, I got to excited working on this kit I totally forgot to take pictures...

but I did took more pictures of the finished kit.

here it is!

Btw, the wheels included in the kit is not this one in the pictures. These are Kazama M11X wheels.



very low center of gravity

to me, this thing is still the sexiest looking Shaft Drive Drift kit.

Oh about the steering.. heres the mod I did. Its now adjustable ackerman with full lock capability.


_________________


Wed Oct 05, 2011 5:38 pm
Profile WWW
User avatar

Joined: Sat Sep 26, 2009 1:05 pm
Posts: 1694
Location: Japão Gifu ken - Ogaki shi
Post Re: Street Jam NEO-ZEON
eita bonito de + em :D

_________________
Chassi GRK 2+ / ESC hobbywing V3.1 / motor 10.5T / Radio Futaba 4PKs


Wed Oct 05, 2011 9:30 pm
Profile WWW
User avatar

Joined: Sat Sep 10, 2011 4:52 am
Posts: 217
Location: londrina-pr japao-mie
Post Re: Street Jam NEO-ZEON
locura,locura esse chassi,msm sendo carda,,,muito massa!!!!e o esterço,,xapado!!!! :D :D :D

_________________
Chassis:GRK2+ Esc:hobbywing V3.1 Motor:Enroute 10.5 Radio:Futaba 4pks



Thu Oct 06, 2011 9:07 pm
Profile
User avatar

Joined: Thu May 26, 2011 5:02 pm
Posts: 48
Location: Jaragua do Sul - SC
Post Re: Street Jam NEO-ZEON
fiquei de cara com ele, muito bonito, só essa rabeta q fica meio estranho.

_________________
At.
Cleiton

---
HPI Sprint 2 Drift


Sat Oct 29, 2011 9:11 am
